Description

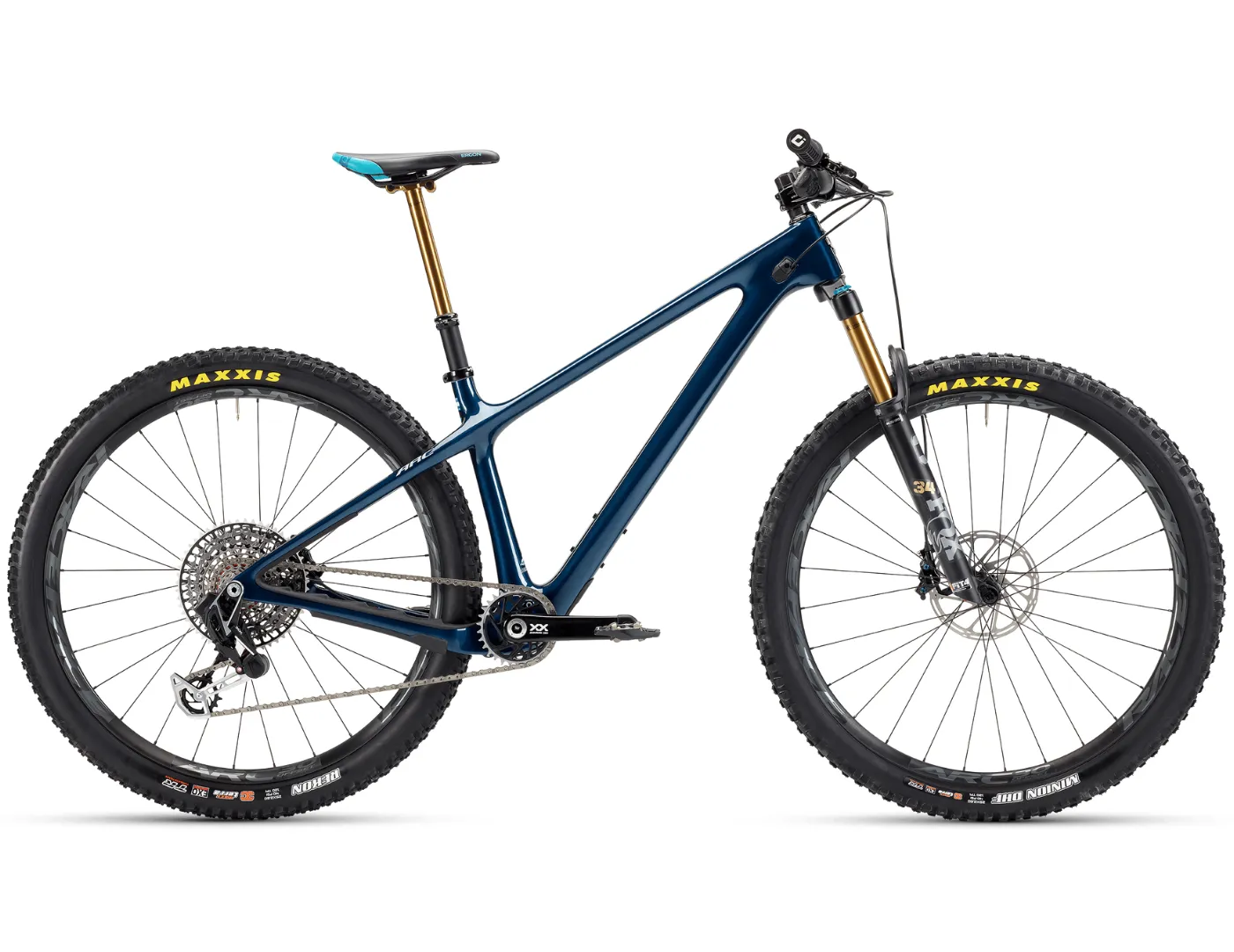

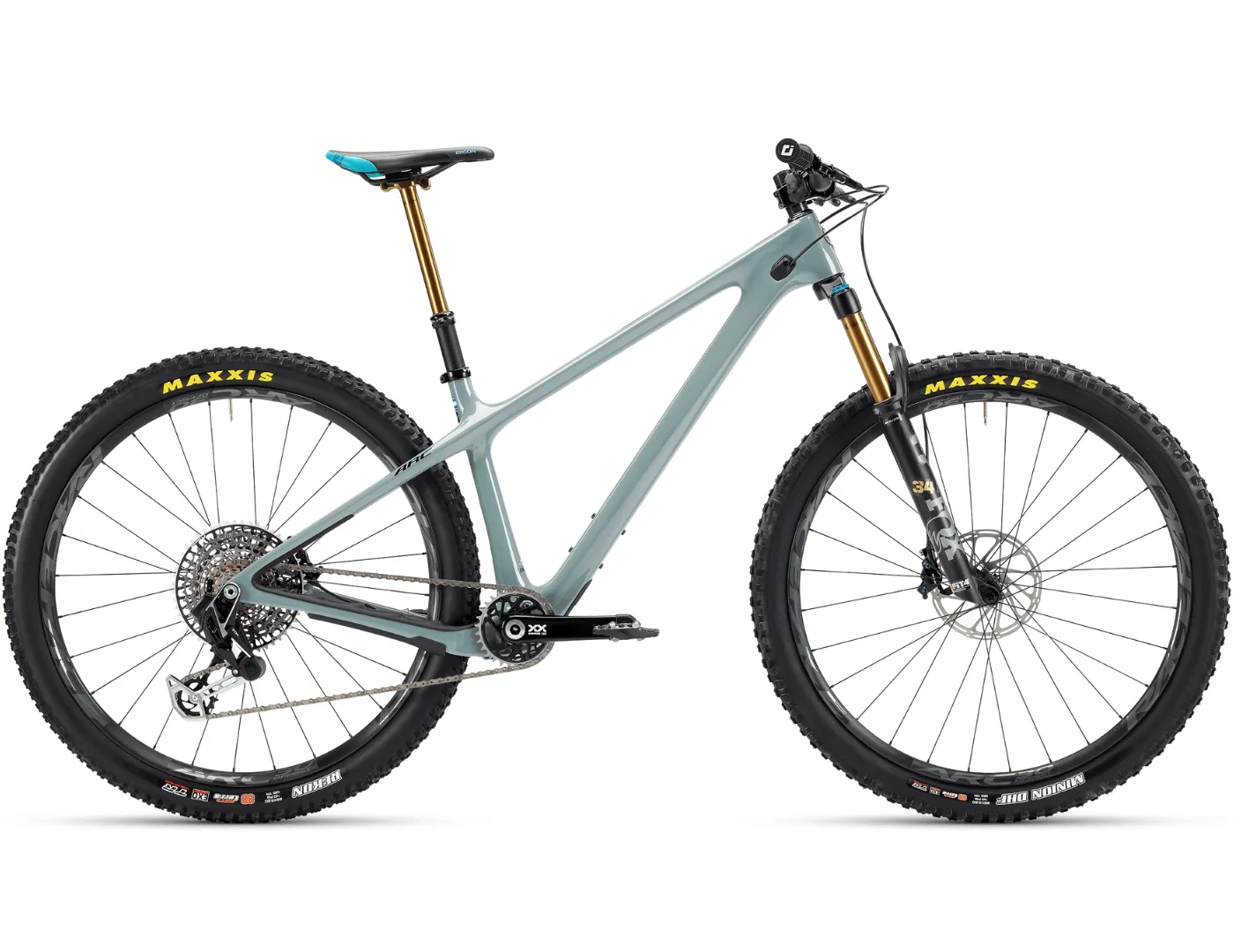

The ARC is back. Conjuring up all the nostalgia, hoots and hollars from yesteryear. It’s your instant-feedback steed for any trail. Show it your singletrack, pump track and your bikepack route too. It’s got history to live up to and new history to make. And it’s already impatient.
Specification
|
DETAILS |
TURQ Carbon Frame, 130mm Fox Factory 34 Fit4, SRAM X0 T-Type and Level TLM Brakes |
|
FRAME |
TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle. |
|
FORK |
FOX FACTORY 34 FIT4/130MM |
|
MATERIAL |
TURQ SERIES |
|
WEIGHT |
24.87 |
|
WHEELSET |
RACEFACE ARC OFFSET 30MM/DT SWISS 350 UPGRADABLE |
|
REAR DER |
SRAM X0 EAGLE AXS TRANSMISSION |
|
SHIFT |
SRAM AXS POD CONTROLLER |
|
CRANK |
SRAM X0 EAGLE TRANSMISSION 32T 170MM |
|
BB |
SRAM DUB BB92 |
|
CASSETTE |
SRAM X0 EAGLE TRANSMISSION 10-52 |
|
CHAIN |
SRAM X0 EAGLE TRANSMISSION FLATTOP |
|
BRAKES |
SRAM LEVEL TLM |
|
ROTORS |
SRAM CENTERLINE 180/SRAM CENTERLINE 180 |
|
POST |
FOX TRANSFER 31.6MM / SM: 175MM, MD-XL: 200MM |
|
FRONT TIRE |
MAXXIS MINION DHF 2.6 EXO |
|
REAR TIRE |
MAXXIS REKON 2.6 EXO |
|
HEADSET |
CANE CREEK 40 INTEGRATED |
|
BAR |
YETI CARBON 35X760MM |
|
STEM |
BURGTEC ENDURO MK3 35X50MM |
|
GRIPS |
ODI ELITE PRO |
|
SEAT |
SILVERADO CUSTOM |
Geometry
| SM | MD | LG | XL | ||
| A | WHEEL SIZE | 29.0 | 29.0 | 29.0 | 29.0 |
| B | REACH | 16.5 | 17.5 | 18.3 | 19.3 |
| C | EFFECTIVE TOP TUBE LENGTH | 22.7 | 23.8 | 24.6 | 25.7 |
| D | STACK | 24.9 | 25.2 | 25.4 | 25.8 |
| E | HEADTUBE LENGTH | 3.7 | 4.1 | 4.3 | 4.7 |
| F | SEAT TUBE LENGTH | 15.0 | 16.1 | 17.7 | 19.5 |
| G | EFF. SEAT TUBE ANGLE | 76.0 | 76.0 | 76.0 | 76.0 |
| H | HEADTUBE ANGLE | 67.0 | 67.0 | 67.0 | 67.0 |
| I | ESTIMATED BB HEIGHT | 12.2 | 12.2 | 12.2 | 12.2 |
| J | CHAINSTAY LENGTH | 17.0 | 17.0 | 17.0 | 17.0 |
| K | FRONT CENTER | 28.0 | 29.1 | 30.0 | 31.1 |
| L | WHEELBASE | 45.0 | 46.1 | 47.0 | 48.2 |
| M | STANDOVER | 28.5 | 28.4 | 28.3 | 28.3 |
| N | AXLE TO CROWN | 21.4 | 21.4 | 21.4 | 21.4 |
| O | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 |
| P | VERTICAL FORK TRAVEL | 4.7 | 4.7 | 4.7 | 4.7 |
Size
